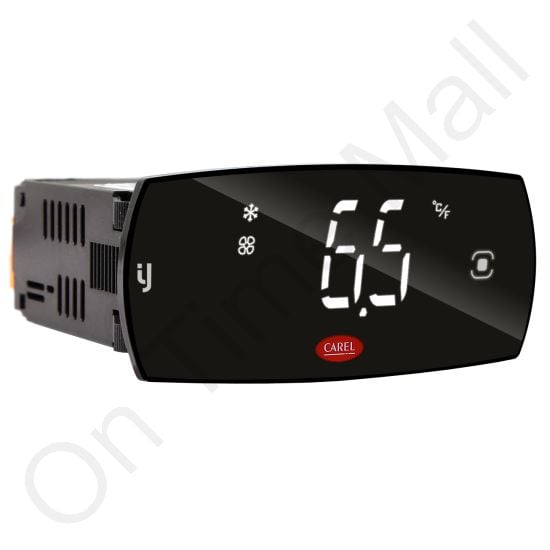

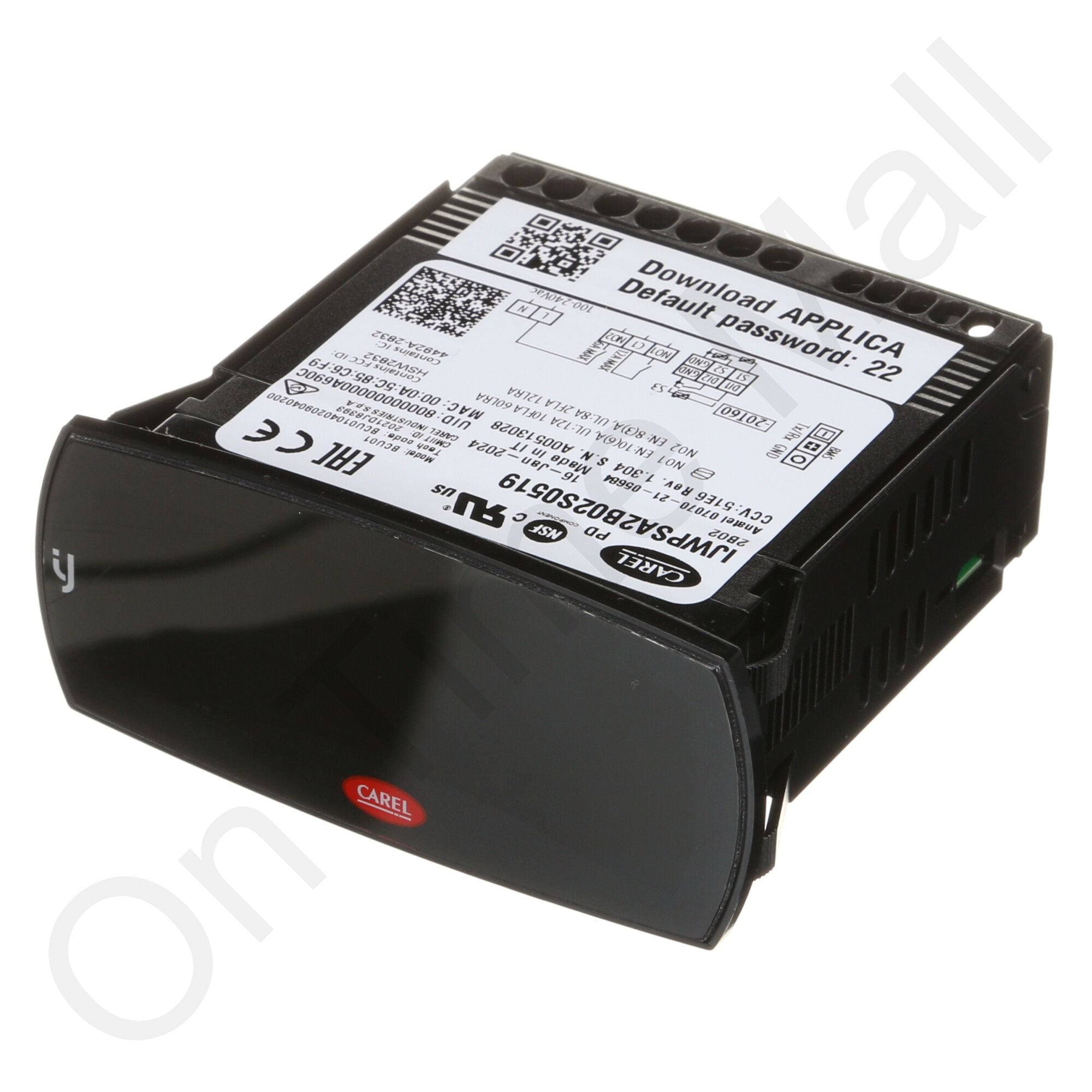

IJWPSA4B02S0519 Refrigeration Controller Bundle

Overview

iJW Electronic controller for field service and new installations.

Designed for both field replacements and new installations. Simple to use thanks to native BLUETOOTH and NFC connectivity. Installers can use their smartphone with the APPLICA app for configuration, testing and maintenance of the controller, while the end users can optimise everyday tasks (such as recording HACCP data) with the CONTROLLA app. Available for both Android and IOS.

Wide Range of Applications:

• Controllers with 2, 4 or 6 relays

• Small and Large format

• Compatibility with NTC, PTC, PT1000 probes

• Humidity measurement and management (optional)

• RS485 or TTL port for connection to supervisory system

• Modbus or CAREL protocol.

Aesthetics and Usability

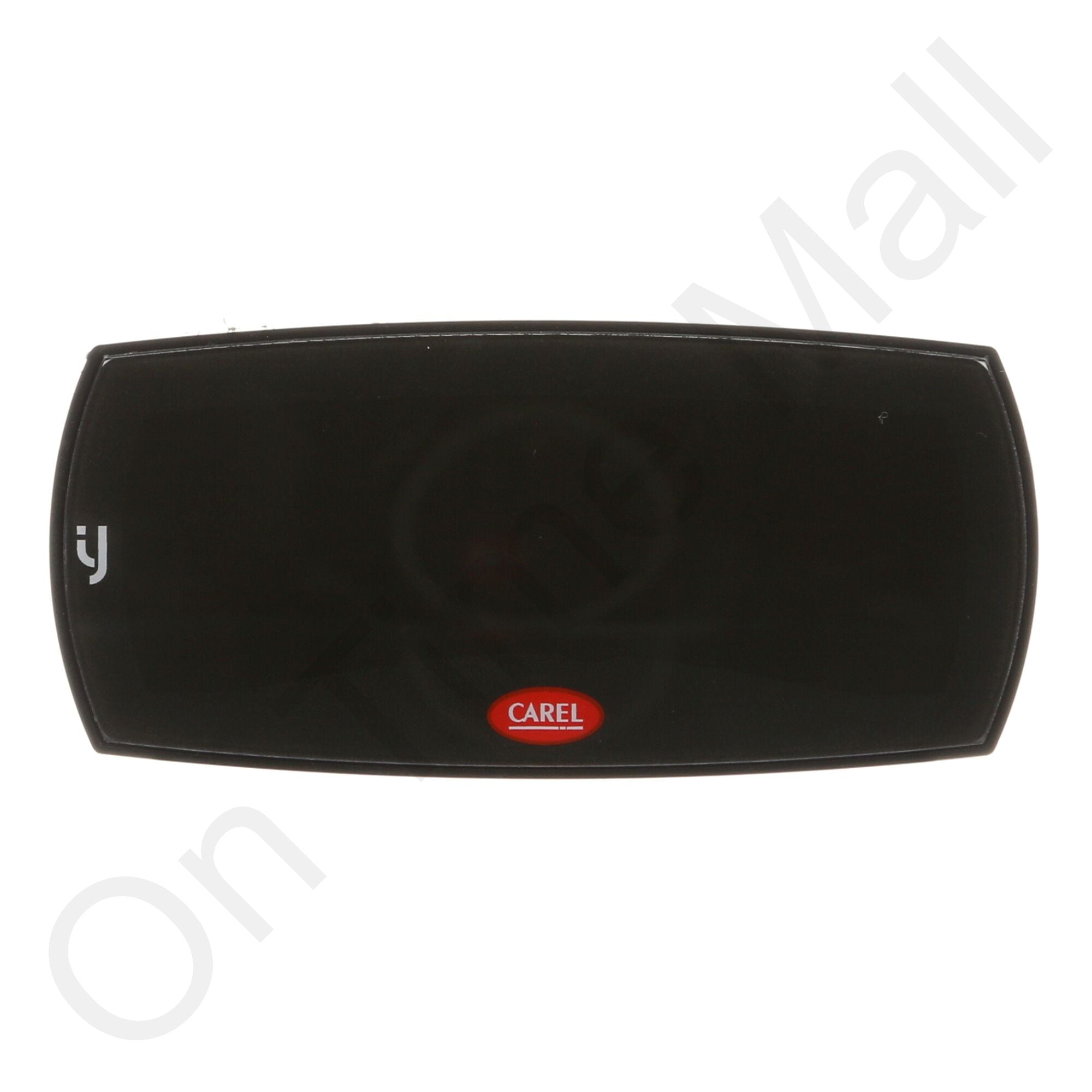

Slim and elegant for perfect aesthetic integration and simplified cleaning; capacitive touchscreen and immediate navigation with backlit single function keys.

Installers Save Time In The Field

Easy configuration using the Wizard, immediate and intuitive interaction with the multi-language app

Ready-to-use solution for end users

Easy interaction thanks to direct commands (set point, on-off, defrost) and simplified everyday tasks (such as HACCP recording) using the CONTROLLA app.

Interaction with the controller

iJW can be configured and controlled via the front keypad, or via smartphone, using the NFC or Bluetooth connection.

The NFC connection can be used to read and modify the iJW status by simply placing the smartphone alongside the controller.

The Bluetooth connection, on the other hand, provides continuous communication, in real time, for all the control functions.

For Installers

Key smartphone features for installers:

• Easy controller configuration using the Wizard

• Save, export, edit, share and import favourite configurations

• Controller and alarm management, direct commands, LIVE graph/temperature log

• TEST mode for managing connected loads

Let the WIZARD guide you through the most suitable configuration. Then integrate and optimise it based on your experience.

SAVE your favourite configurations, share them via email or IM and import them onto other iJW controllers.

TEST correct unit operation through analysis of the variables in real time and testing the connected loads.

For End Users

Ready to use app for end users

Easy interaction thanks to direct commands (set point, on-off, defrost) and simplified everyday tasks (such as HACCP recording) using the CONTROLLA app.

View the temperature and controller status, access simple routine commands without any risk of inadvertently changing the operating parameters.

Graphically displays the temperature/humidity logs and downloads the HACCP records.

Specifications:

Probe Types: NTC, PTC, PT1000

Number of Probes: 2 probes + 1 digital input + 1 multi

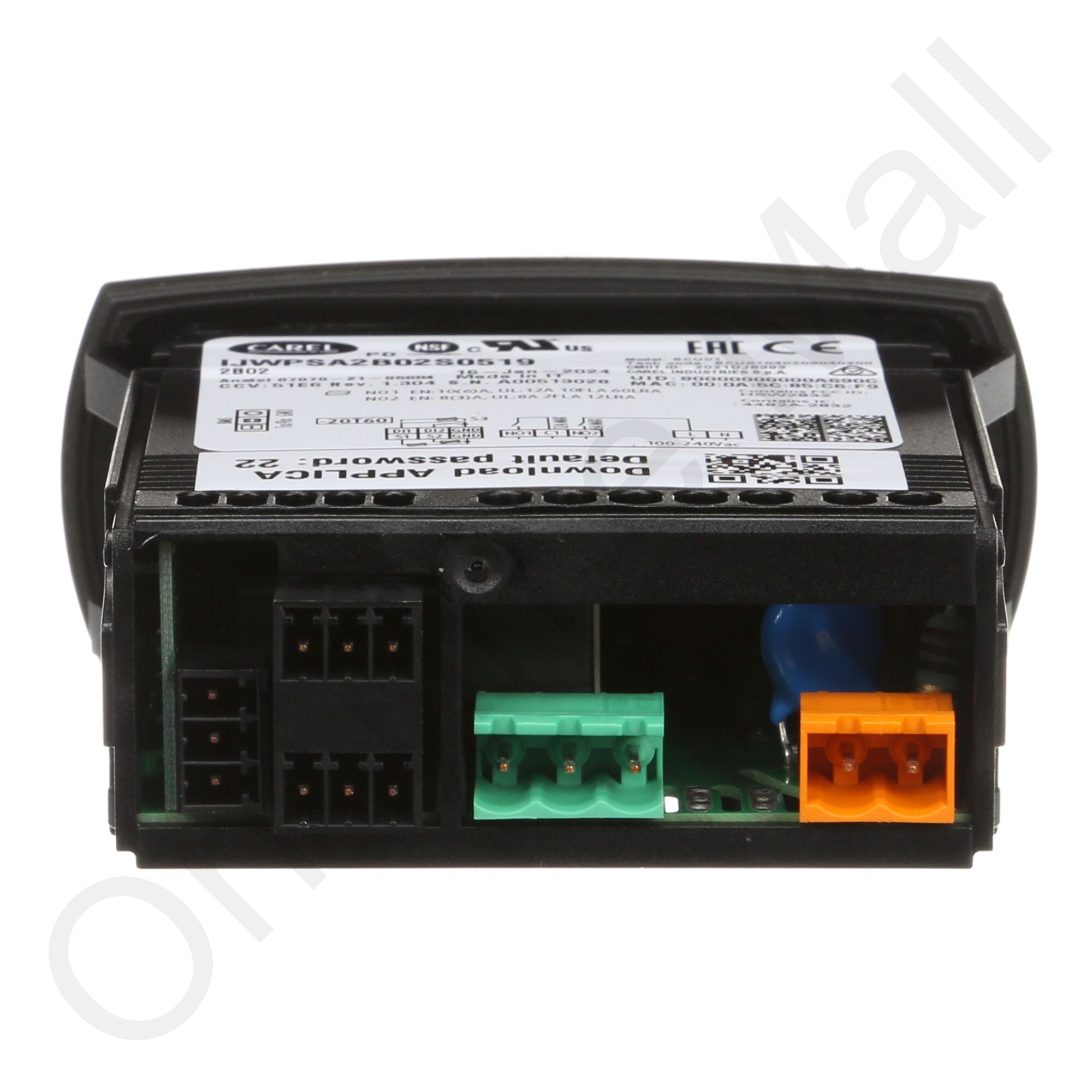

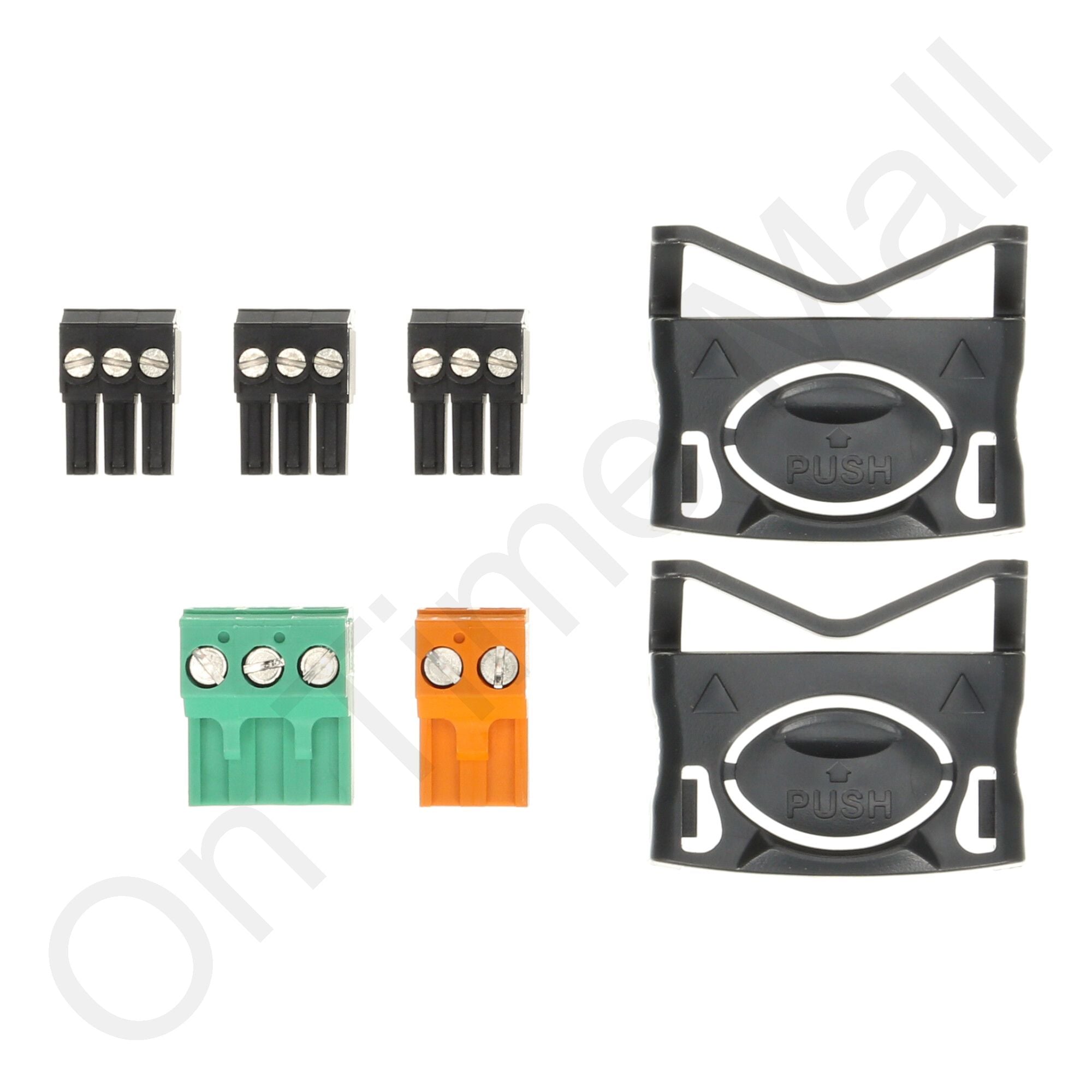

Connectors: Removable Number of Relays: 4

Power Supply: 115/230V, 50/60 Hz

RTC (Real Time Clock): Yes

Serial: BMS

Protocol: Modbus

NFC: Yes

Bluetooth: Yes

Analogue Input (humidity): No

4.0 Ready

iJW is suitable to be included in a 4.0 system thanks to the BMS port (RS485) for connection to a supervisory system.

If the TTL port is available, the TTL/RS485 converter (BXOPZI4850000) or similar device can be used.

Dimensions mm (inch):

The IJWPSA4B02S0519 can be used a upgraded replacement for the following refrigeration controls:

Full Guage - MT-512E-2HP, MT-512E-LOG
Danfoss - EKA100, EKA101, EKC100, EKC102, ERC211
Dixell - XR10CX, XR20CX, Universal-R (TC1), Universal-R (TC2), Universal-R (TC7)
Eliwell - ICPLUS, IC901, IC902, ID961, ID961 LX
KE2 - KE2 Temp + Defrost 20611

Specifications

More Information
Product Length	3.34 inches (8.484 cm)
Product Width	3.11 inches (7.899 cm)
Product Height	1.56 inches (3.962 cm)
Product Weight	0.45 lbs (0.204 kg)
Electrical Input	120-240 VAC
Country of Origin	Italy
Shipping Length	4.75 inches (12.065 cm)
Shipping Width	4.75 inches (12.065 cm)
Shipping Height	2.5 inches (6.350 cm)
