Wall Mount Sensor
Search Results for
Sensors
Diagram
Sensors Not In Diagram
- Not ShownDPWC111000
$199.26
Documentation

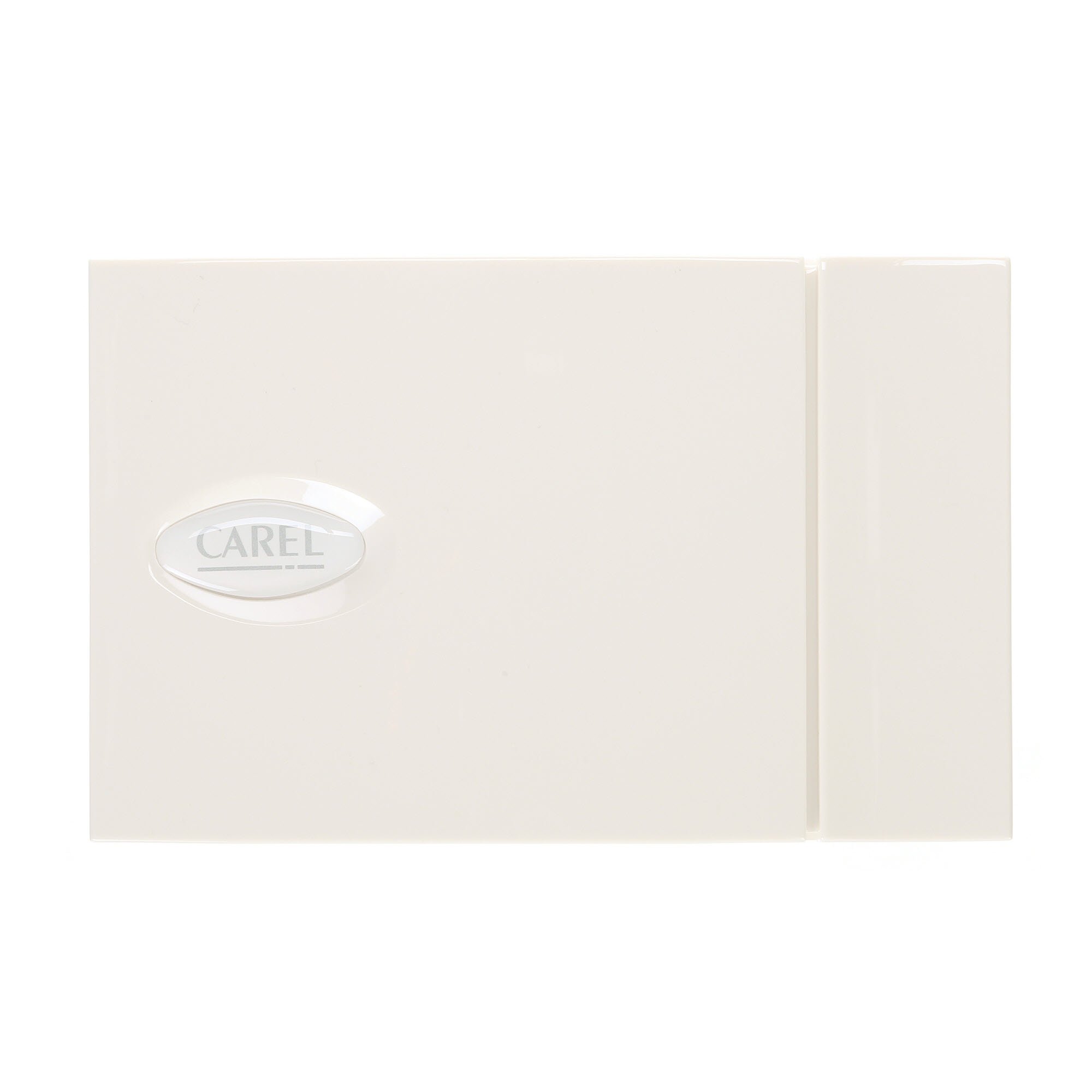

DPW* Wall Mount Sensors are used in heating and air-conditioning systems. They are suitable for residential use.

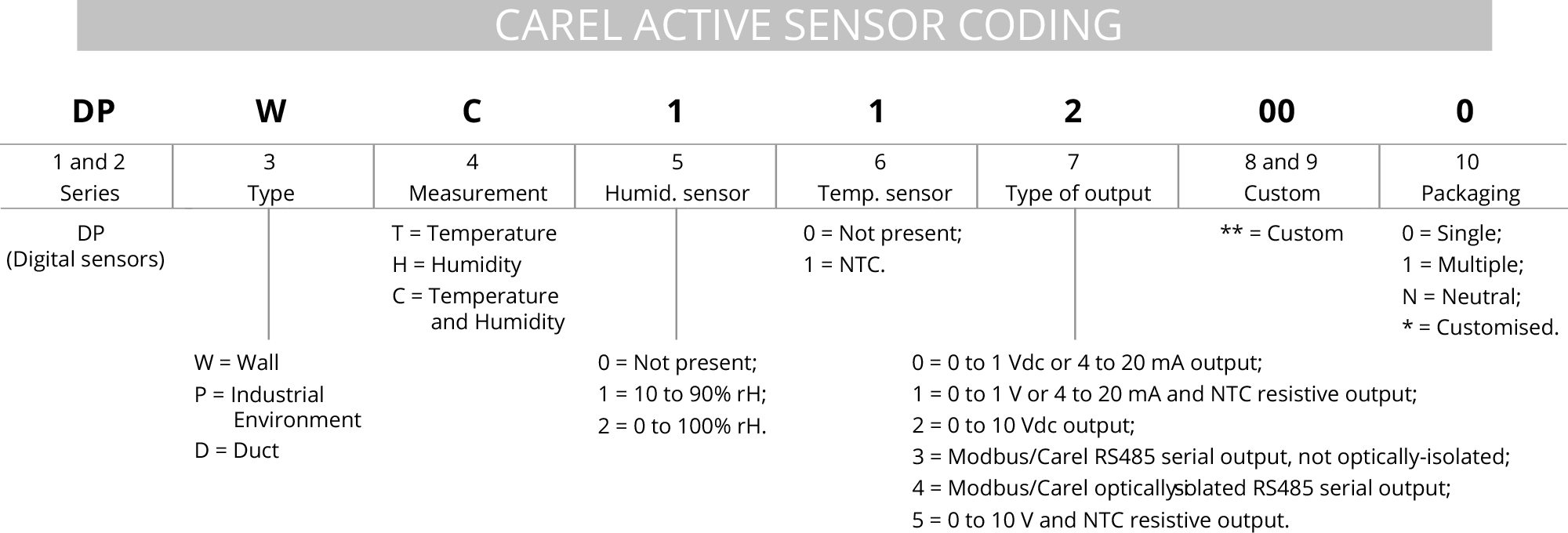

The various models differ due to the different active outputs (current or voltage, selectable by jumpers) except for the models with NTC resistive temperature output (hereinafter indicated as “NTC res.”), compatible with CAREL controllers. A model is also available with optically-isolated RS485 serial output for connection to the serial line (pCO or Carel supervisor). The sensors can have an alternating current (12 to 24 Vac) or direct current (8 to 32 Vdc) power supply.
