Carel PGDE000FZ0 Graphic Display
SKU
PGDE000FZ0
Brand
Carel
$511.25
Need Help
Assistance Available
Easy Returns
Quick & Hassle Fee
Guaranteed Fit
Always the correct part
Overview

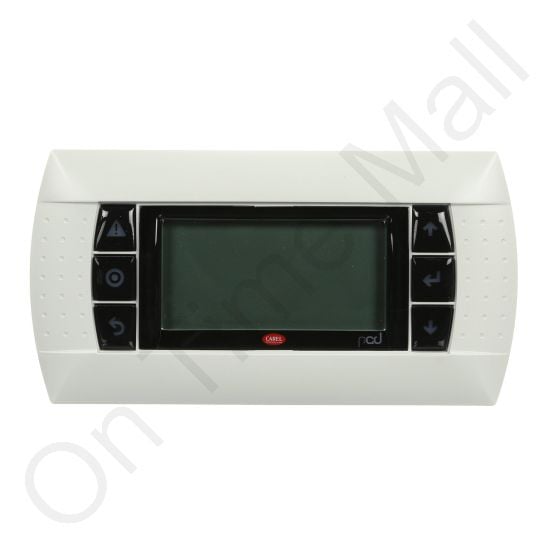

pGDe Built-In Or Panel Mount Monochromatic LCD Graphic Terminal with 132x64 Pixel Resolution, LED White Backlighting, and Buzzer.
Terminal is compatible with the previous PCOI/PCOT, which ensures complete management of the graphics by displaying icons (defined during the development of the application program) and the management of international fonts in two sizes: 5x7 and 11x15 pixels. The terminal does not require any additional software.
More Information On pGD Graphic Displays
All pGD and pGN graphic displays can be interchanged with each other. They use a RS485 connection to connect to pCO / c.pCO sistema controllers.
pGD, pGD1, pGN, and pGN1 Displays
pGD, pGD1, pGN, and pGN1 displays feature a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.
pGD and pGN displays are 120 x 32 pixels, while the pGD1 and pGN1 displays are 132 x 64 pixels.
pGD displays have green backlighting
pGD1 offers green and white backlighting
pGN series are all white backlit
pGDE And pGNE Displays
pGDE and pGNE displays use the symbols from the built-in keypad on the pCO5/5+/c.pCO controllers
Both series have 132 x 64 pixel displays and white LED backlighting.
pDG-I pCOI Enclosure
pGD-I integrates pGD graphic display technology inside the pCOI plastic case. This allows the previous layout to be used, while exploiting the technology and performance of the pGD.
The pCOI Enclosure version is available for the pGD, pGD1, pGN and pGN1 series.
Specifications
| Manufacturer | Carel |
|---|---|
| Product Type | Humidification |
| pGD Series | pGDE |
| pGD Display Backlighting Color | White |
| Mounting | Built-In or Panel |
| Screen Resolution | 132 x 64 Pixels |
| Buzzer | Yes |
| Logo | Yes |
| Quantity Included | 1 |
| Product Length | 6.125 inches (15.558 cm) |
| Product Width | 3.25 inches (8.255 cm) |
| Product Height | 1 inches (2.540 cm) |
| Product Weight | 0.4 lbs (0.181 kg) |
| Shipping Length | 7 inches (17.780 cm) |
| Shipping Width | 5.5 inches (13.970 cm) |
| Shipping Height | 2.5 inches (6.350 cm) |
