Overview

More Information On pGD Graphic Displays

All pGD and pGN graphic displays can be interchanged with each other. They use a RS485 connection to connect to pCO / c.pCO sistema controllers.

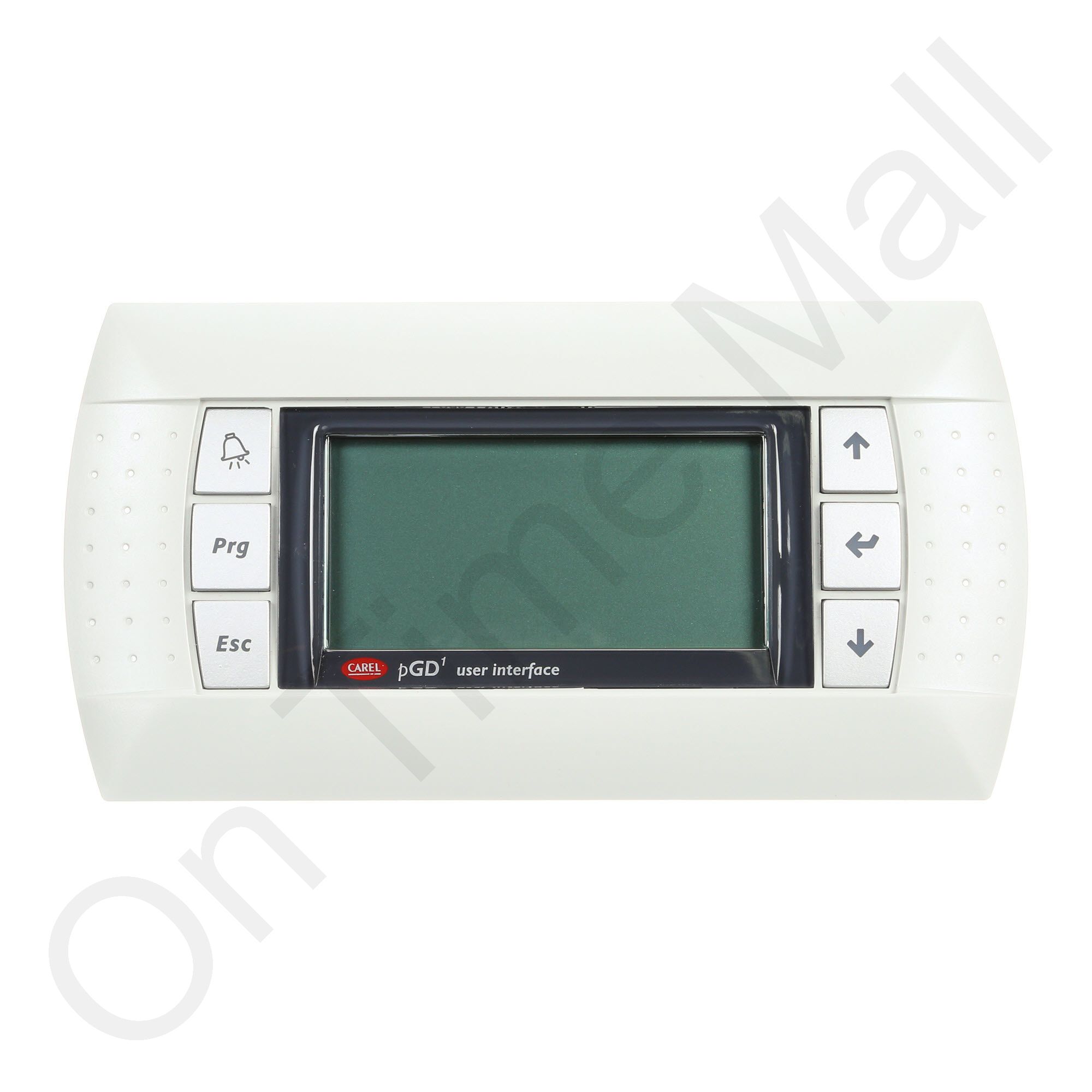

pGD, pGD1, pGN, and pGN1 Displays

pGD, pGD1, pGN, and pGN1 displays feature a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.

pGD and pGN displays are 120 x 32 pixels, while the pGD1 and pGN1 displays are 132 x 64 pixels.

pGD displays have green backlighting

pGD1 offers green and white backlighting

pGN series are all white backlit

pGDE And pGNE Displays

pGDE and pGNE displays use the symbols from the built-in keypad on the pCO5/5+/c.pCO controllers

Both series have 132 x 64 pixel displays and white LED backlighting.

pDG-I pCOI Enclosure

pGD-I integrates pGD graphic display technology inside the pCOI plastic case. This allows the previous layout to be used, while exploiting the technology and performance of the pGD.

The pCOI Enclosure version is available for the pGD, pGD1, pGN and pGN1 series.

Specifications

More Information
Manufacturer Carel
Product Length 6.12 inches (15.545 cm)
Product Width 3.3 inches (8.382 cm)
Product Height 1.2 inches (3.048 cm)
Product Weight 0.4 lbs (0.181 kg)
Shipping Length 7 inches (17.780 cm)
Shipping Width 5.5 inches (13.970 cm)
Shipping Height 2.4 inches (6.096 cm)

Documentation

File Icon Carel pGD1 Technical Leaflet (514.44 kB)
File Icon Carel PCO User Manual (3.29 MB)
