Carel 98C615P004 Adapter Kit
Overview

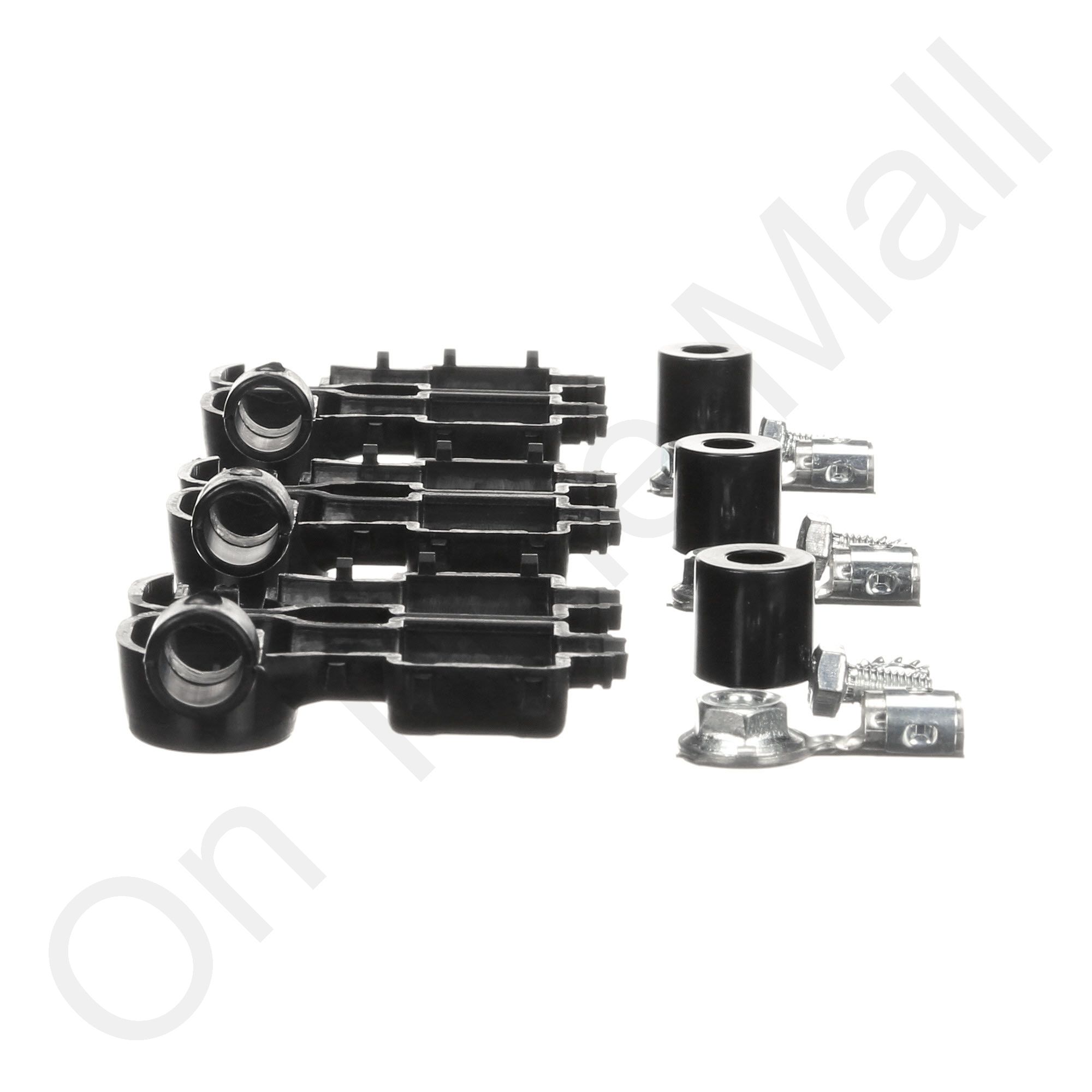

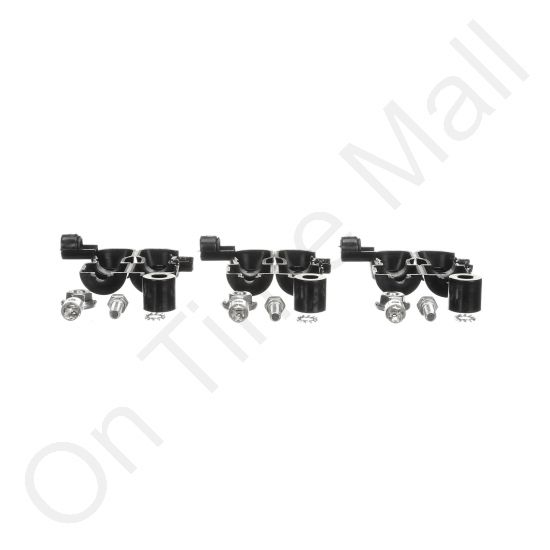

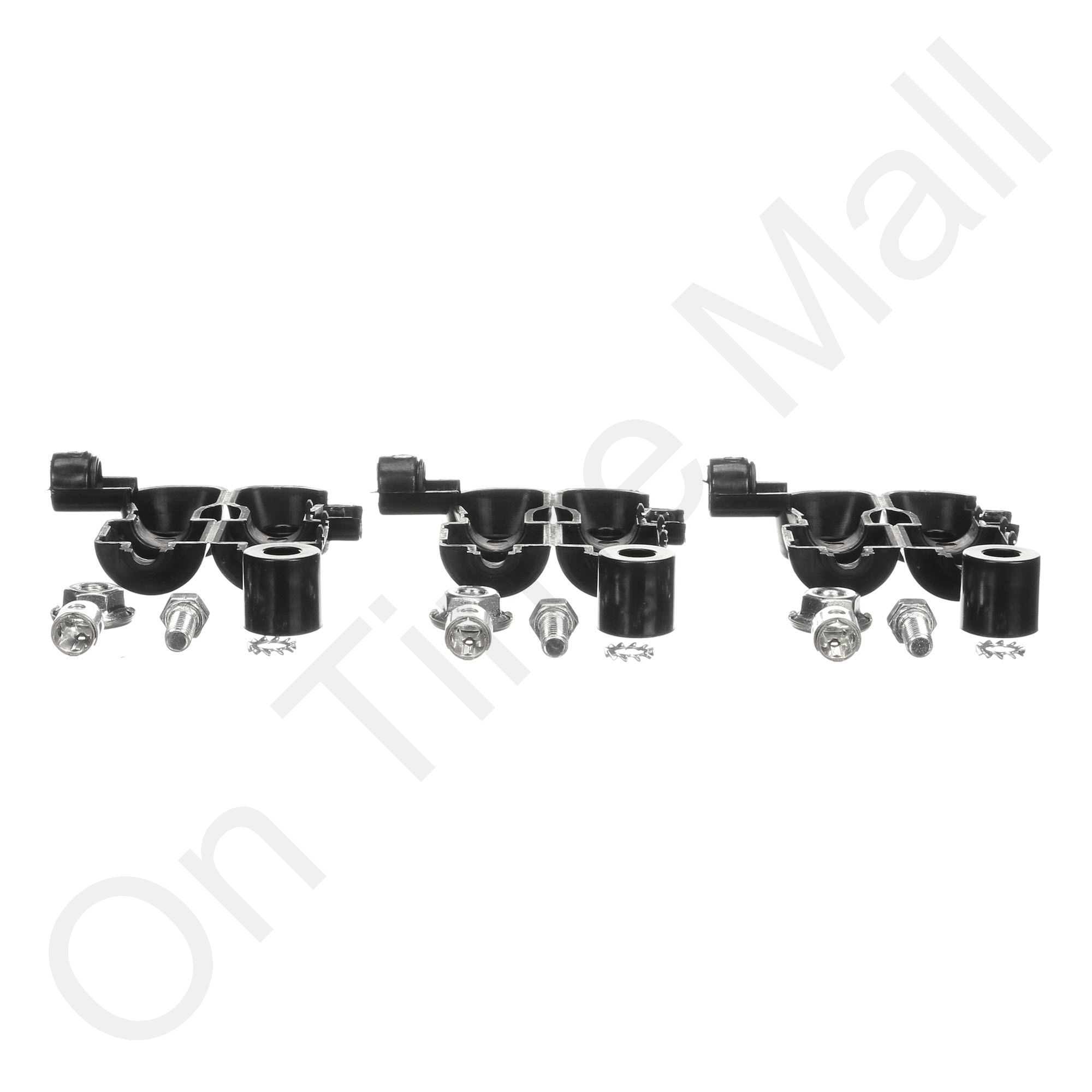

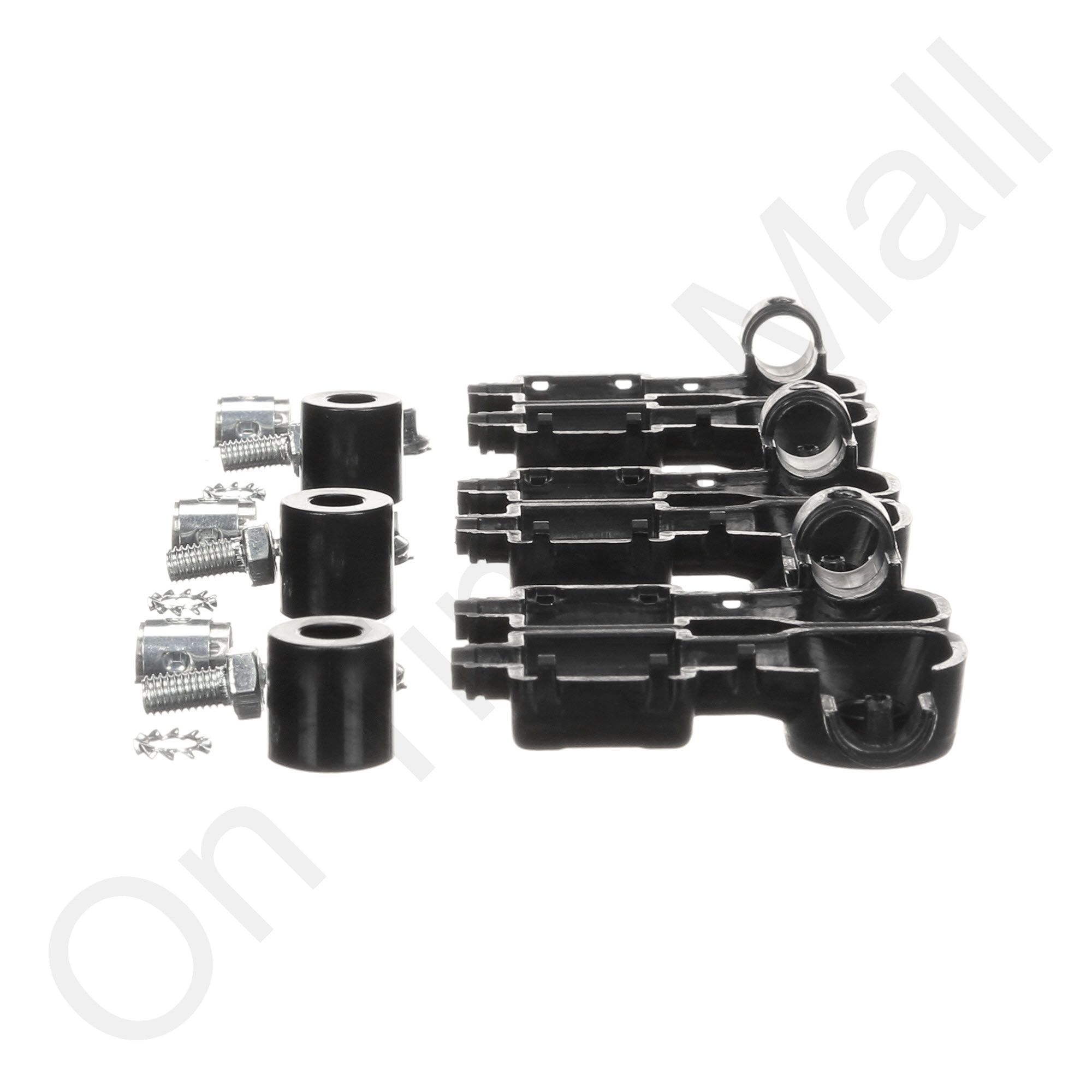

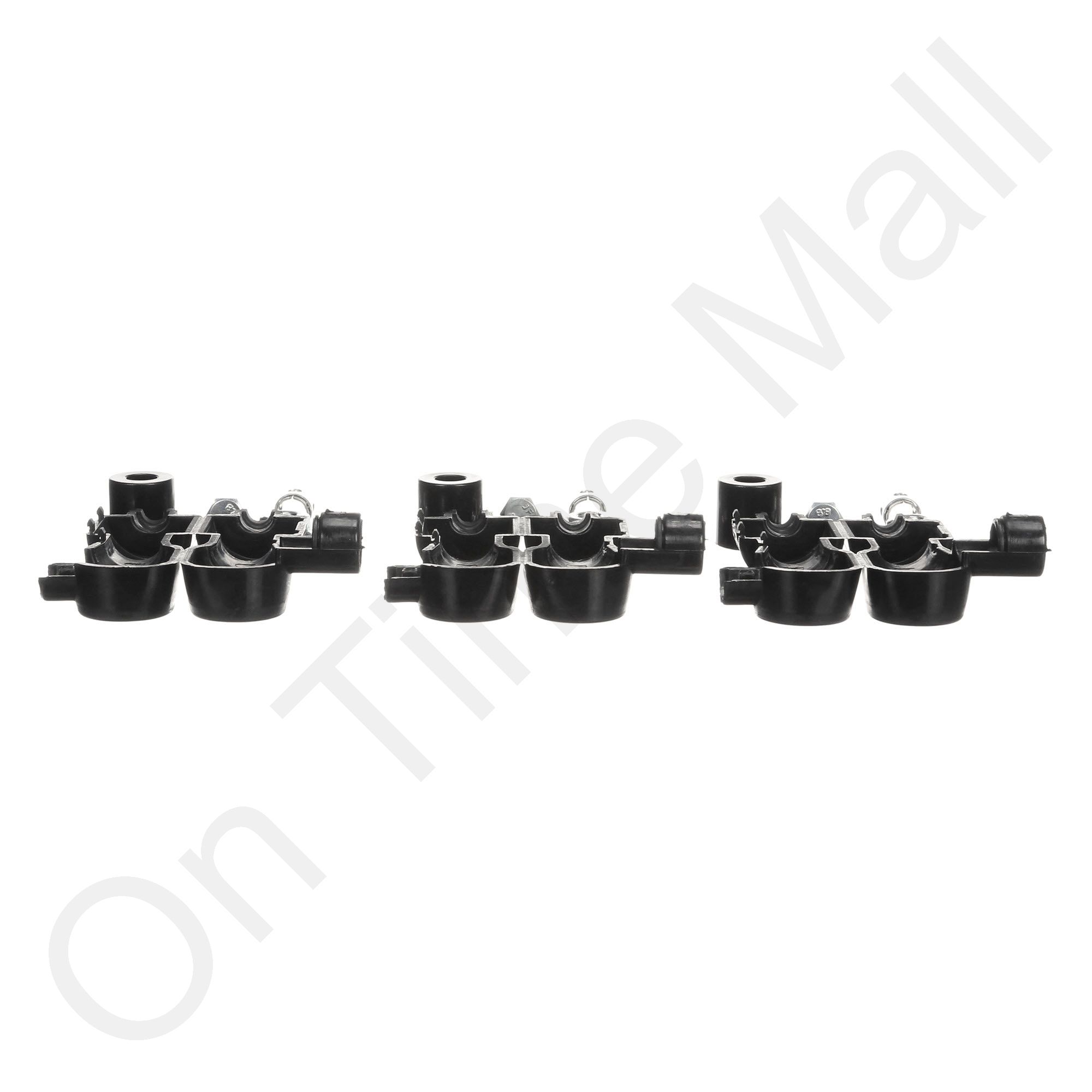

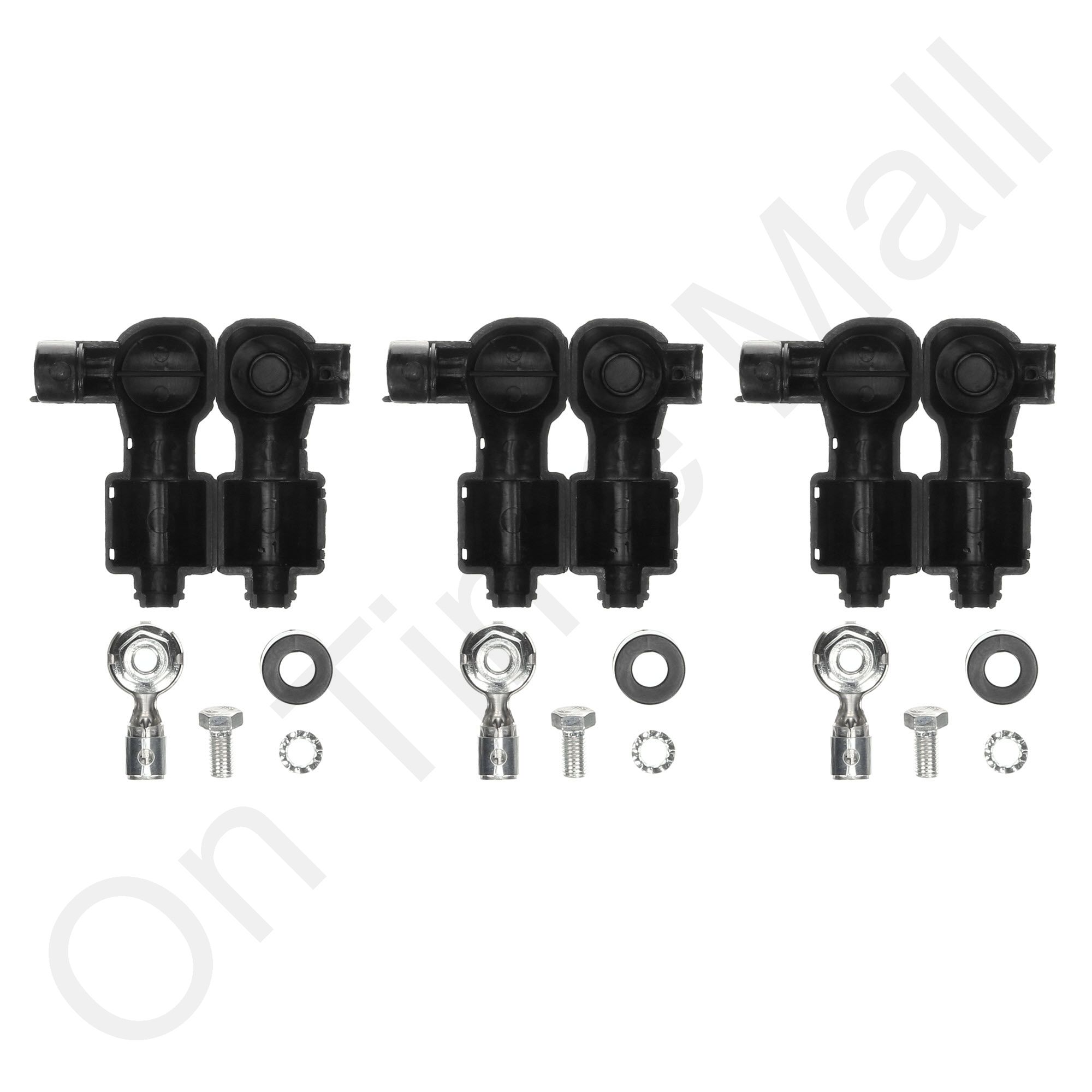

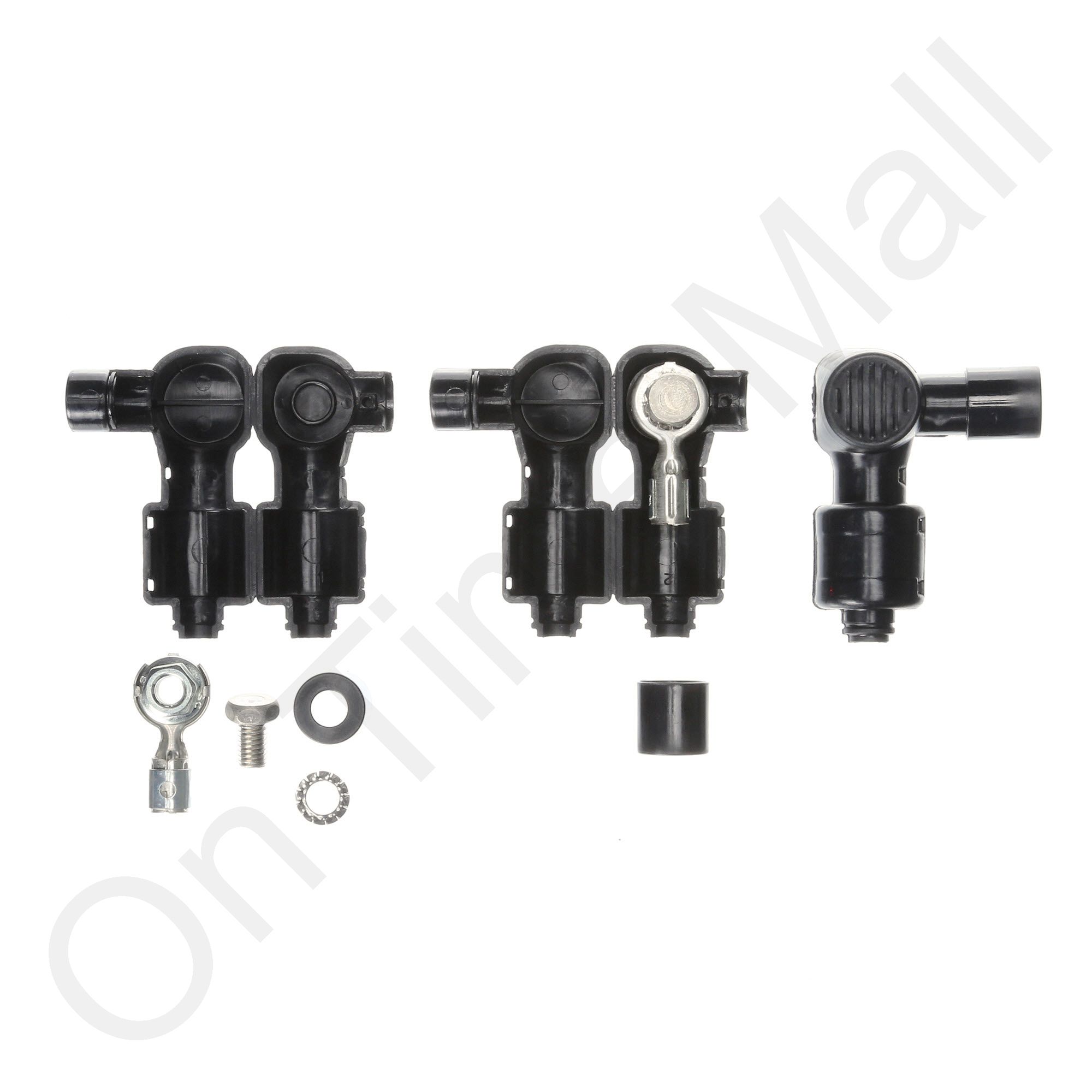

ADAPTER KIT FOR SCREW M5 FOR BL1-BLR. All the original Carel steam humidifiers were shipped with threaded studs sticking out of the steam tanks. These steam tanks had part numbers ending in H0 or H1. Over time this style tank has been obsoleted and replaced by the H2 style steam tanks. H2 style tanks have sparkplug style connectors sticking out of the top of them unlike the threaded stud sticking out of the top of the H0 and H1 tanks. In order to use an H2 series steam tank with spark plug style connectors on it, you must first install an upgrade kit on the existing electrode wires. These adapter kits are very simple to install and are left on the wires so you don't need to replace the adapter kits once you have them installed. They are reusable for the life of the humidifier. Newer steam humidifiers are shipped with H2-style tanks and already have spark plug-style connectors on the ends of the electrode wires. This kit contains 3 adapters.
Specifications
Manufacturer | Carel |
---|---|
Product Type | Humidification |
Product Length | 6.150 |
Product Width | 5.300 |
Product Height | 1.250 |
Product Weight | 0.100 |
Color | Black |
Country of Manufacture | Italy |
Dimension Length | 4.250000 |
Dimension Width | 3.000000 |
Dimension Height | 1.500000 |
